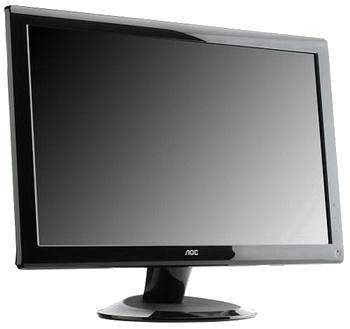

The AOC 2236Vwa offers
premium picture quality for graphics-intensive applications. It comes
with 60000:1 (DCR) contrast ratio, which delivers exceptional image
clarity, and 170-degree viewing angle to provide increased visibility
from side viewpoints. It's response time is 5ms, a key feature that
prevents fast moving objects from becoming blurred.
The AOC 2236Vwa offer consumers brilliant large screen performance at
highly competitive price.
PRODUCT DETAILS:
- Analog inputs,
Digital inputs: DVI-D
- 1920x1080@60Hz
maximum resolution
- Contrast Ratio
60000:1 (DCR)
- 300 cd/mē (typ)
- Typ. Response Time (tr+tf):
5ms
| Line |
Value Wide |
| Visible Screen size
(cm) / Size |
54.7 / 21.5'' |
| Screen Format |
16:9 |
| Panel Type |
TN |
| Brightness |
300 cd/m2 (typ) |
| Contrast Ratio |
60000:1 (DCR) |
| Pixel Pitch (mm) |
0.248 x 0.248 |
| Display Area (mm) |
476.64 x 268.11 |
| Viewing Angle (H/V) |
170° / 160° |
| Response Time |
5 ms |
| Scanning
Frequency |
|
| Horizontal /
Vertical |
30 ~ 80KHz / 56Hz~75Hz |
| Pixel Frequency |
148 MHz |
| Resolution |
|
| Maximum Resolution |
1920x1080@60Hz |
| Recommended
Resolution |
1920x1080@60Hz |
| Colours |
16.7M |
| HDCP Compatible |
x |
| Signal Input |
|
| Analogue Input:
D-Sub |
x |
| Digital Input: DVI-D
/ HDMI |
x / - |
| Connectors |
|
| D-Sub 15 pin |
x |
| DVI-D 24-pin |
x |
| HDMI |
- |
| Power |
|
| Power Source |
110~240VAC, 50/60Hz |
| Power Consumption |
On: <49W ,
Standby: < 1W |
| Other
Features |
|
| Plug & Play |
DDC 1/2B/CI |
| User Control |
Menu / Enter, Up/image
ratio, Down /Auto, Volume, Power |
| OSD Languages |
15 languages |
| Speaker |
Yes |
| Regulations |
CULus, CCC, RoHS,
CE, FCC, Windows Vista Premium, TUV/S, TUV-Bauart,
ISO13406-2, EPEAT Gold |
| Other Features |
Glossy cabinet, USB
slot, Off timer, Touch Key, low power consumption, 100mm VESA
Wallmount, Eco mode, i-Menu |
| Dimensions |
|
| Dimensions (WxHxD)
mm |
582.14 x
424.47 x 65.87 |
| Weight |
Net: 4.35 kg / Gross:
5.8 kg |
| Loading Qty w/pallet |
40''
/ 20''' |
| Warranty |
3 Years |
| EAN code |
4038089120759 |
|
