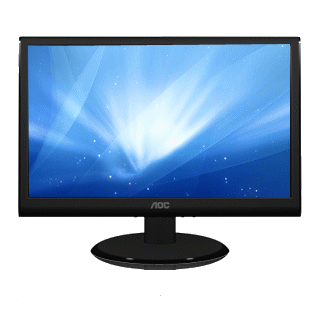

AOC introduces n950Sw of
the 50-Series of attractive, slim monitors with clean styling. n950Sw
ensure clear visibility and vibrant images with a vivid contrast ratio
of 60,000:1 DCR.
Outwardly, the 50-Series monitors do not look at all cheap, with a slim
and rounded design that tapers to just 16mm at the top and sides. The
back of the cabinet and top surface of the base feature a luxurious
brushed texture. Control buttons are discreetly recessed underneath the
shiny-edged screen bezel.
PC and power connectors are rear-facing for direct insertion, more
convenient than more common downward-pointing ports.
Tech Spec and Product
details
- Screen Size:
18.5" W
- Viewable Image Size:
470mm
- Pixel Pitch: 0.3(H)×0.3
(V)mm
- Display Area: 409.8 (H)×230.4
(V)mm
- Brightness: 200 cd/m2
- Contrast Ratio (typical):
60000:1 (DCR)
- Response Time (typical):
5ms
- Viewing Angle: 90/65
(CR≥10)
- Scan Frequency: H:
30K~60KHz V: 50~75Hz
- Pixel Frequency:
85.5MHz
- Recommended Resolution:
1366×768@60Hz
- Display Colours: 16.7M
- HDCP Compatible: No
- Input Signal: Analog
RGB
- Input Connector:
15-pin D-Sub
- Power Supply:
90~240VAC, 50/60Hz
- Power Consumption:
Power On: <20W(Typical), Standby: <0.5W
- Plug & Play: VESA
DDC2B? & DDC2B/CI
- User Control:
Auto/Exit, Eco(DCR)/left, Image Ratio/rigtht, Menu, Power
- OSD Languages: 16
languages
- Speakers: No
- Safety &
Regulations: CCC, cCSAus, CE, FCC, Win7
- Wall-Mount: 75mm×75mm
- Cabinet Colour: Black
- Mechanical Function:
Tilt: -4°~17°
- W×H×D (w/base)mm:
444.35×342×175 mm
- W×H×D (package)mm:
496×356×110 mm
- Weight (Net /Gross):
2,63Kg/3.55Kg
|
